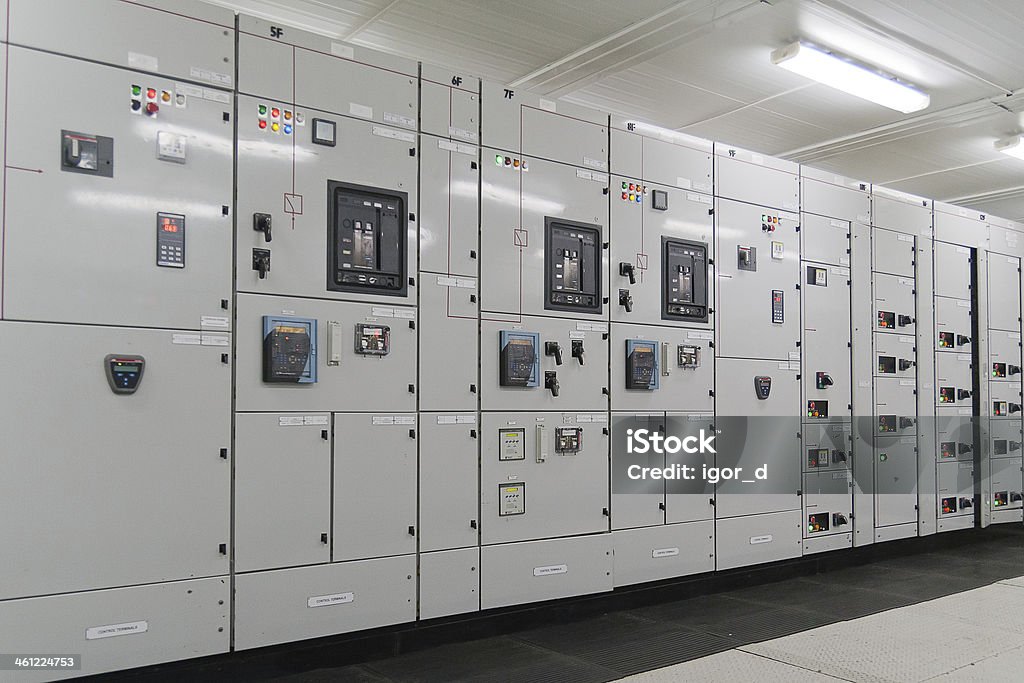

Our LV Switch Gear Panels

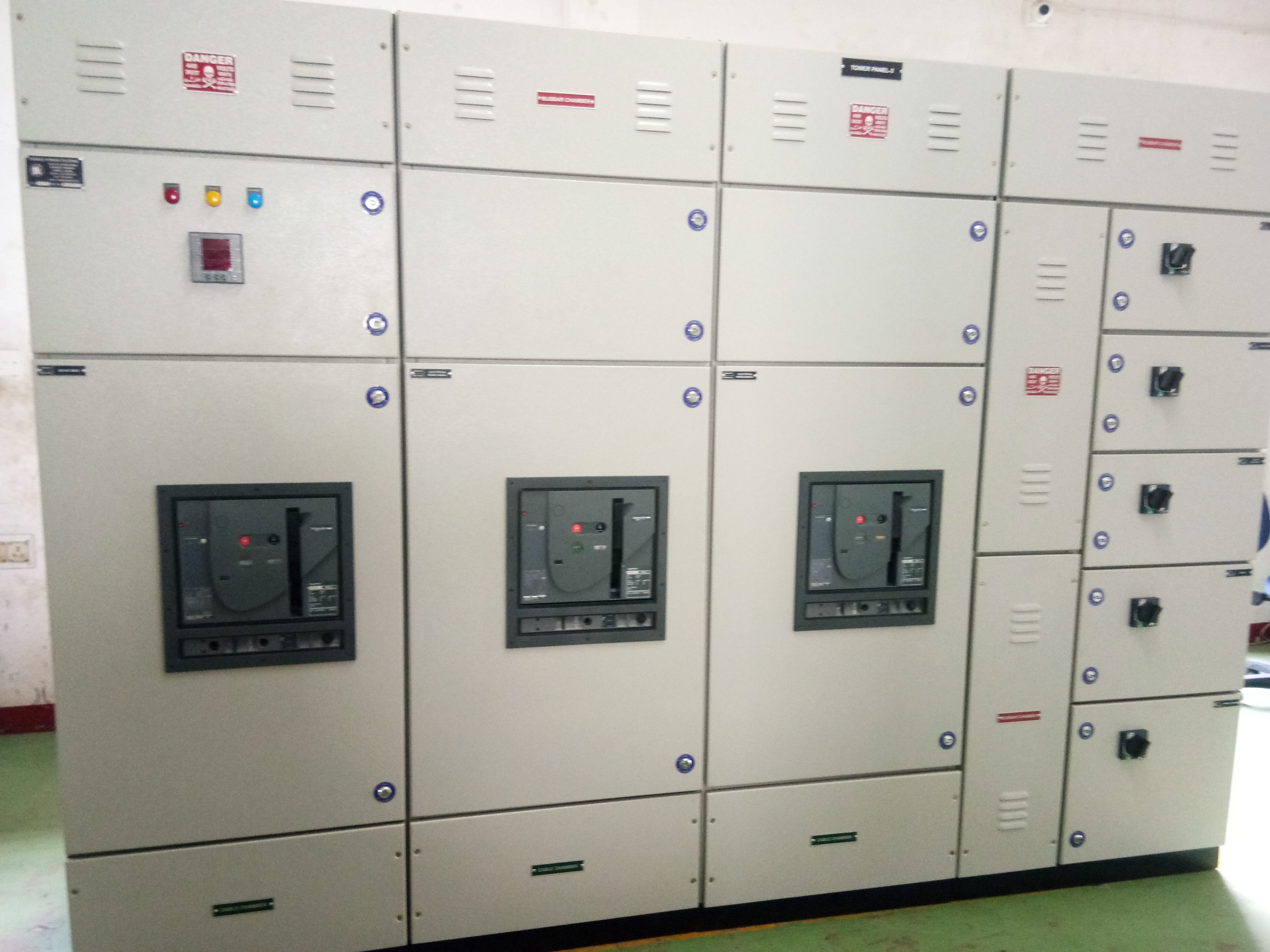

POWER CONTROL CENTER (PCC Panels)
MAIN PANELS
AMF &SYNC PANELS
TECHNICAL DETAILS
- LV SWITCHGEARS PANELS IS FREE STANDING, FLOOR MOUNTING PANELS
- 7 TANK POWDER COATED CRCA SHEET STELL FABRICATED CONSTRUCTION
- AIR INSULATED SWITCHGEAR WITH COMPARTMENTLIZED DESIGN FOR OUTGOING FEEDERS AND Max. OF 6 OUTGOING FEEDERS IN VERTICAL PANELS.
- DRAWOUT BREAKERS OF ABB/L&T/SCHNEIDER
- PCC PANELS MAKING FOR UP TO 100KA /5000A
- DESIGNED AS PER IS8623-1993/IEC 60439
- RATED VOLTAGE-3PHASE 4WIRE 415V
- RATED FREQUANCY 50HZ
- RATED CURRENT BUSBAR UP TO 5000A
- METERS REPUTED BRAND OF ANALOG/DIGITAL METERS SHALL BE PROVIDED TO SUIT THE CUSTOMER REQUIREMENTS.
- THE PANELS IS TYPE TESTED FOR SHORT CIRCUIT, TEMPERATURE RAICE AND INGRESS PROTECTION AT CPRI
- VETTRI POWER SYSTEM ASSURES QUALITY OF ALL PRODUCT &SERVICE
